Here is the photo album for Penmaenmawr & Welsh Granite Co. No. 'Watkin', a 0-4-0VBT located in Caernarfon, Gwynedd. If you would like to suggest additional photos for this album, please click here.

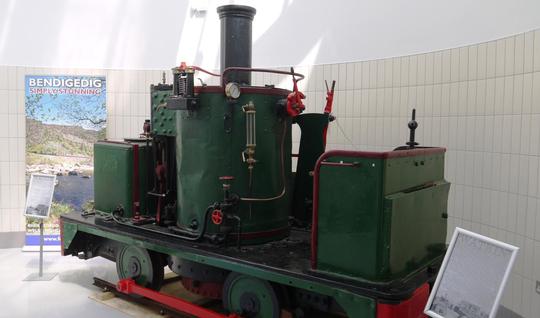

P&WGC 0-4-0VBT 'Watkin' on display in the new station foyer of the WHR, Caernarfon 3 June 2019.

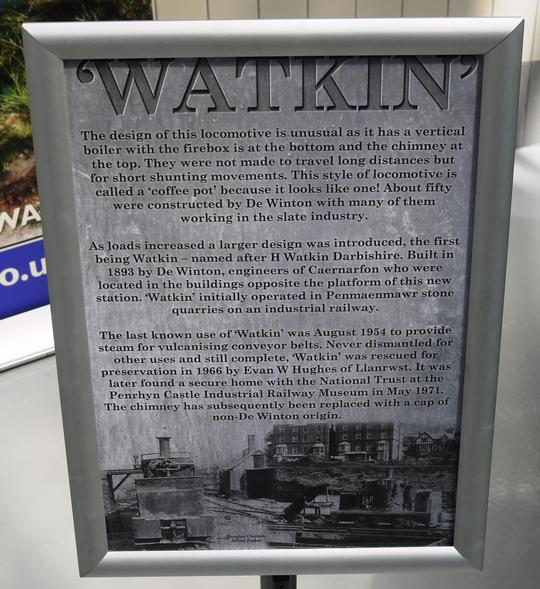

Information board for 'Watkin' in the new station foyer of the WHR, Caernarfon.

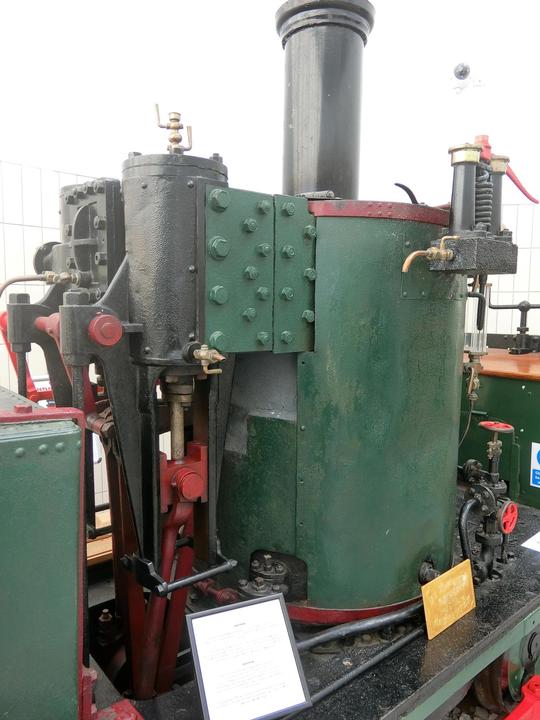

The general arrangement of a De Winton engine is shown well here. The vertical boiler defines the type, with the cylinders fixed to it working vertically on a crank axle. The safety valves are on the side of the boiler and, on the extreme left of the photo, the water tank can just be seen.

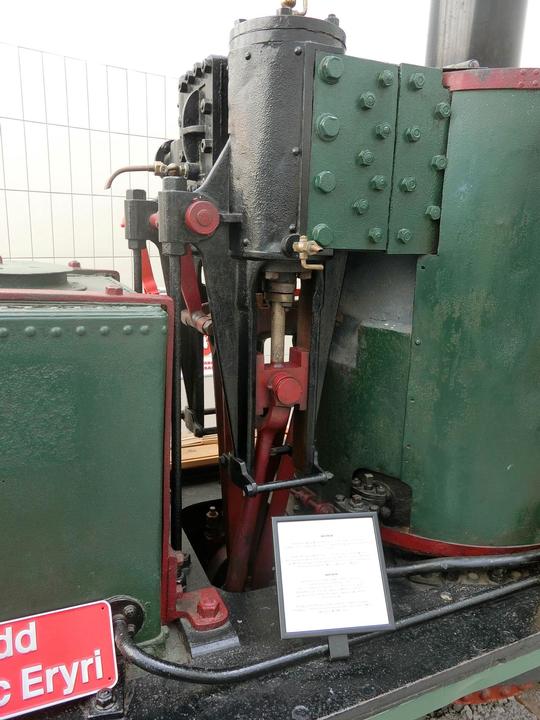

The cylinders, showing the hefty bracket onto the boiler and the slide bar crosshead and connecting rod of the cylinder nearest the camera.

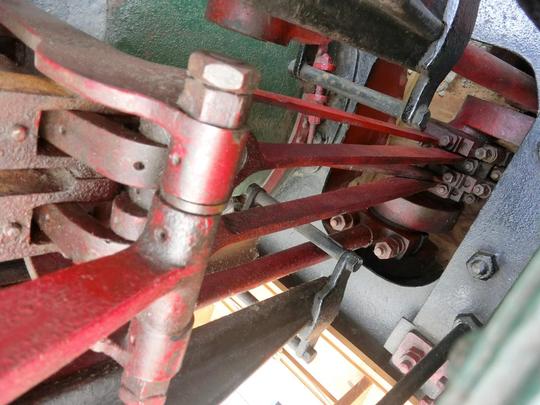

Looking down towards the crank axle shows the eccentrics and their eccentric rods in the centre with the slide bars and connecting rods either side.

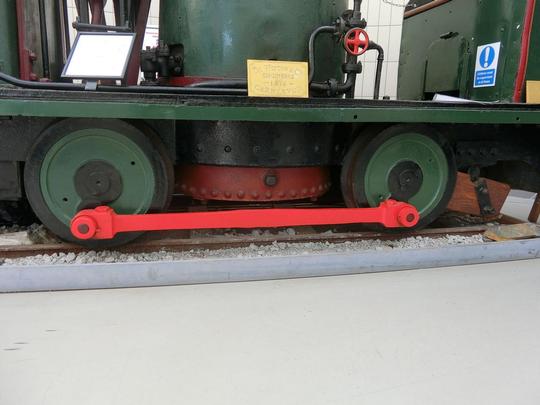

The wheels are linked by a coupling rod. After the rest of the loco this looks quite conventional!.

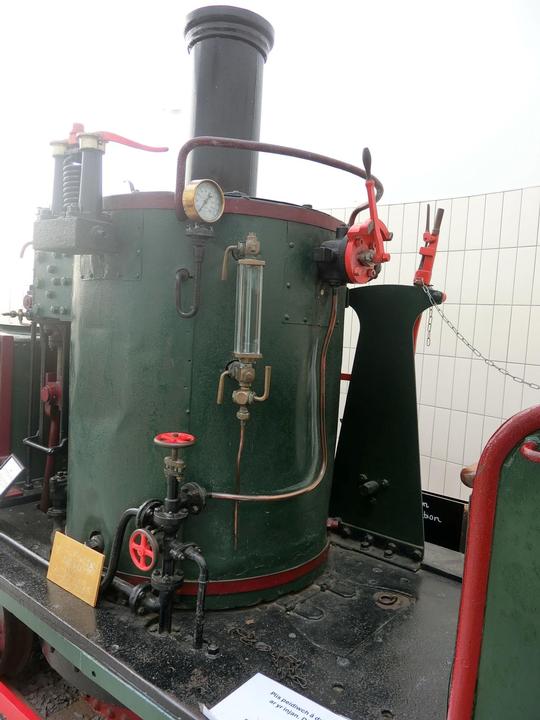

The view from the opposite end of the loco shows the driving position. The regulator (red) on the side of the boiler directly controls the steam supply to the cylinders on the other side of the boiler. To the right is the reverser and the boiler pressure gauge and water level indicator are in the centre of the photo. Notice the hand rail on the boiler. You can well believe that the driver needed something to hang on to!


Penmaenmawr & Welsh Granite Co. 0-4-0VBT No. 'Watkin' Caernarfon, Gwynedd, UK	Location: Welsh Highland Railway station Status: Display
