Here is the photo album for PR (NWR) No. 3157, a 4-4-0 located in Manchester, Lancashire. If you would like to suggest additional photos for this album, please click here.

February, 2008 Photo

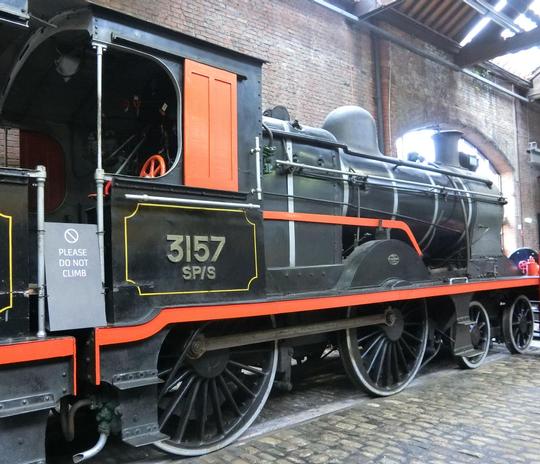

On the footplate of this most British of export locos. You could imagine this standing outside the works at Derby so easily!

The works plate from Vulcan foundry, a works that built so many locos for use both at home and world wide.

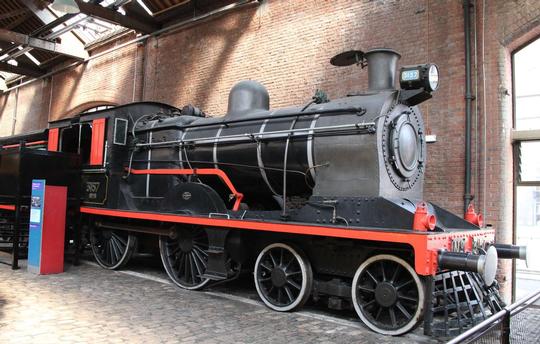

Such a typically British design from the early 20th Century - a 4-4-0 with inside cylinders, supplied when India was the Jewel in the Crown of the British Empire. Operated by Pakistan Railways following partition in 1947, and gifted by Pakistan to the Museum.

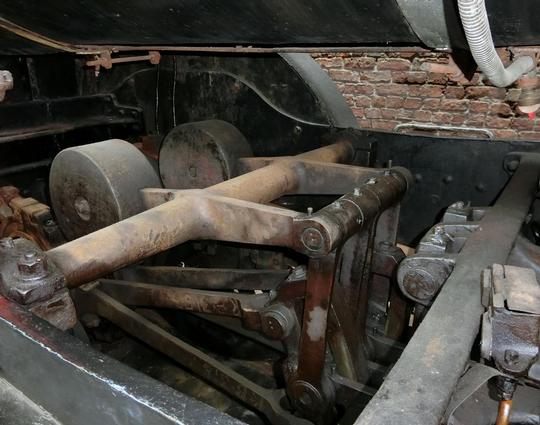

Inside cylinders mean that all the machinery is there. Here we see the two sets of Stephenson link valve gear. Solid, reliable but with fairly poor access for oiling.

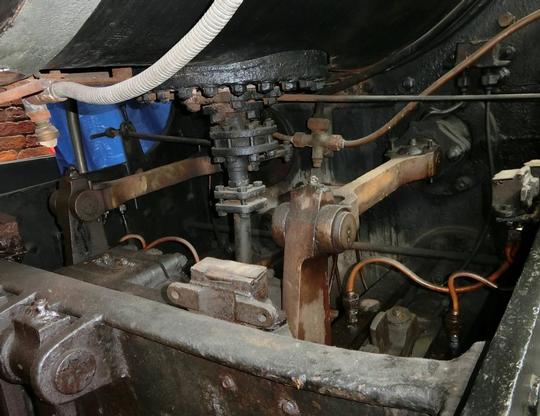

The eccentric rods operate rocking levers to transfer the movement to the piston valves sited above the cylinders as you can see in the photo. Notice on the right of the photo the right hand cylinder's slide bars and little end. Also worth noting are the copper pipes for the lubrication system, fed by the sight feed system visible on the top left in the cab interior photo.


PR (NWR) 4-4-0 No. 3157 Manchester, Lancashire, UK	Location: Science & Industry Museum Status: Display
